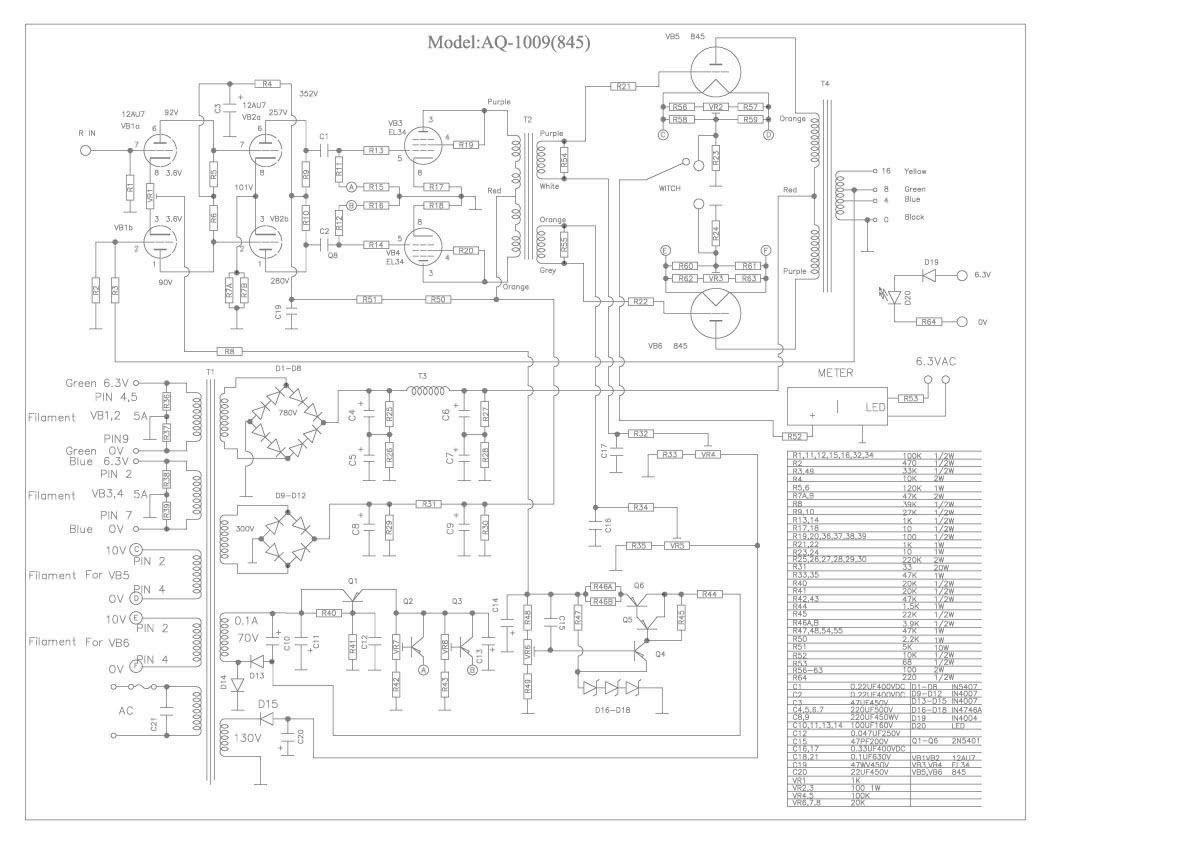

AQ1009/845
Stereo Push/Pull , Mono block Power amplifiers
| Model | AQ1009 |
| Output Power | 60W |
| Frequency responsible at 1 W | 15Hz - 45KHz |
| Distortion at 1W | < 0.5% |
| Distortion at full power | < 3% |
| Frequency responsible at full power | 20Hz - 25KHz |
| S/N Ratio / Noise level mV | 80 db /2.5mV |
| S/N Ratio with A weighting | 92 db (0.6mV) |
| Input impedance | 100K |
| Output Impedance | 4,8,16 Ohm |
| Input sensitive | 1V |
| Power request | 400W |
| Fuse | 5A Slow blow |
| Power cord - Detachable /Fixed | Detachble |
| Input Sockets | RCA Gold Plate |
| Output Termininal | 5 Way Gold Plate Heavy duty |
| Chassis Finish | Shinning Steel |
| Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
| Tube Complement | 845 x 2,EL34 x 2,12AU7 x 2 |
| Dimension W x D x H in mm | 455 x 320 x 215 |
| Shipping Dimension W x D x H in mm | 514 x 400 x 320 |
| Net Weight /Kg | 29Kg |
| Shipping Weight /Kg | 32Kg |
