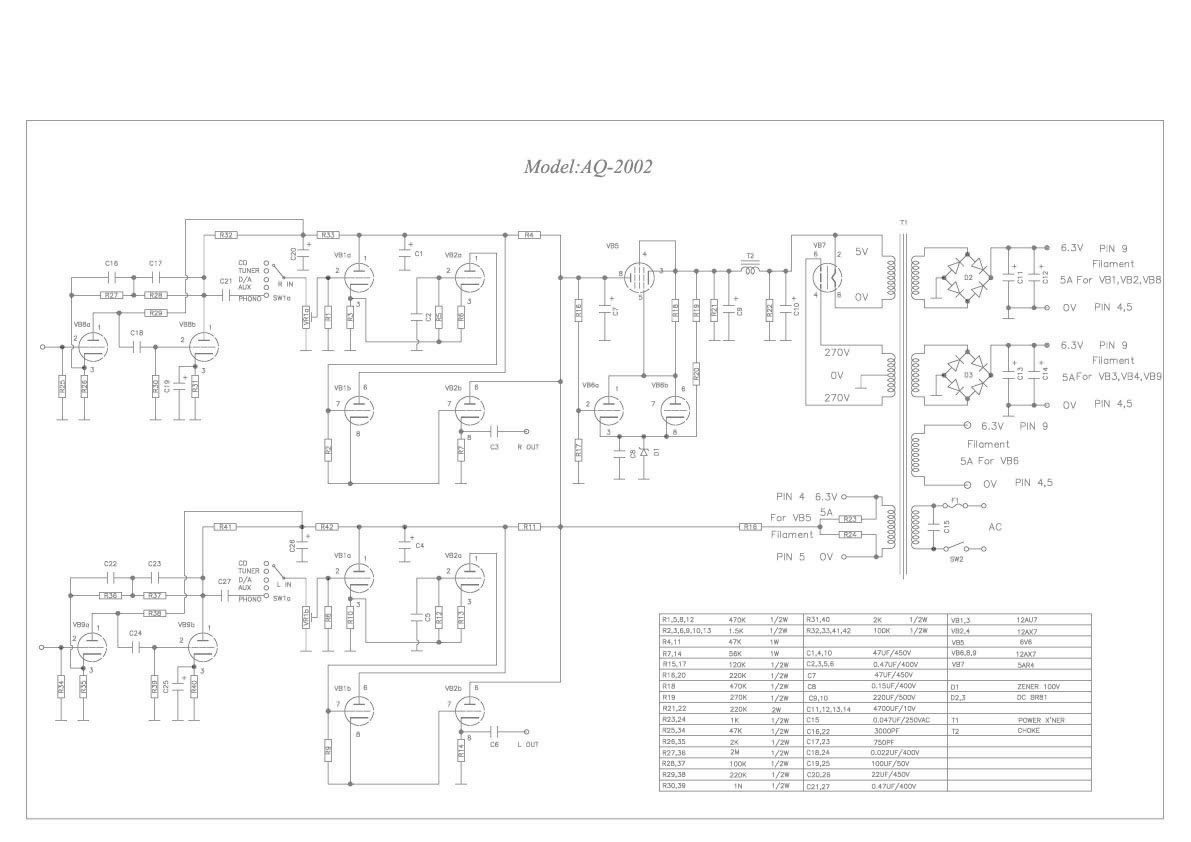

AQ2002 - High grade Phono + Line amplifiers
| Model | AQ2002 |
| Phono section | |
| Gain | 57db |
| Frequency responsible | 20Hz + 17db 20KHz - 17db (Riaa) |
| Distortion | < 1% |
| S/N Ratio / Noise level mV | 79 db /3mV (test at line output) |
| S/N Ratio with A weighting | 88 db (1mV) |
| Line section | |
| Gain | 12 |
| Maximum output | 10V |
| Frequency responsible at 1V | 10Hz - 100KHz |
| Frequency responsible at full power | 12Hz - 70KHz |
| S/N Ratio / Noise level mV | 82 db /1mV |
| S/N Ratio with A weighting | 95 db (0.08mV) |
| Input impedance | 100K |
| Power request | 56W |
| Fuse | 1A Slow blow |
| Power cord - Detachable /Fixed | Detachable |
| Input Sockets | RCA Gold Plate |
| Output Termininal | RCA Gold Plate |
| Chassis Finish | Shinning Steel |
| Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
| Tube Complement | 5AR4 x 1,6V6 x 1,12AX7 x 3,12AU7 x 2 |
| Dimension W x D x H in mm | 390 x 280 x 222 |
| Shipping Dimension W x D x H in mm | 420 x 350 x 333 |
| Net Weight /Kg | 8Kg |
| Shipping Weight /Kg | 9Kg |
