Hurricane - 200W Push/Pull Mono BLock Power


Enlarge Photo

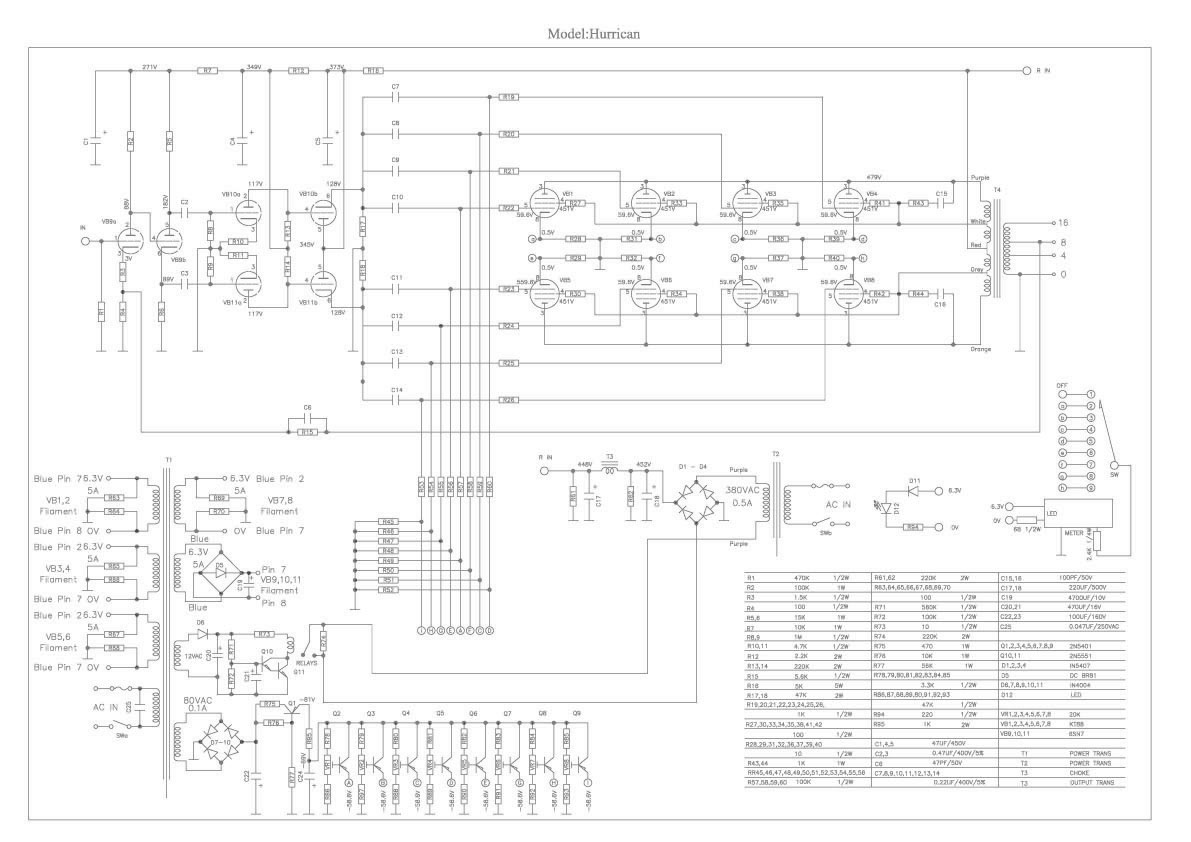

Circuit Diagram

Model Humicane
Frequency responsible  at 1 W 12Hz - 74KHz
Frequency responsible at full power 20Hz - 20KHz
Power outpur 200W
Distortion at 10W <0.3%
Distortion at full <3%
S/N Ratio / Noise level mV 86 db
S/N Ratio with A weighting 93db
Input impedance 100K
Output Impedance 4,8,16 Ohm
Input sensitive 1.7V
Power request 610W
Fuse  10A Slow blow
Power cord - Detachable /Fixed Detachable
Input Sockets RCA Gold Plate
Output Termininal 5 Way Gold Plate Heavy duty
Chassis Finish Shinning Steel
Front Panel Finish Aluminium /Gold /Silver or Black Anodizing
Tube Complement KT88 x 8,6SN7 x 3
Dimension  W x D x H in mm 420 x 550 x 215
Shipping Dimension W x D x H in mm 530 x 650 x 320
Net Weight /Kg 29Kg
Shipping Weight /Kg 32Kg
