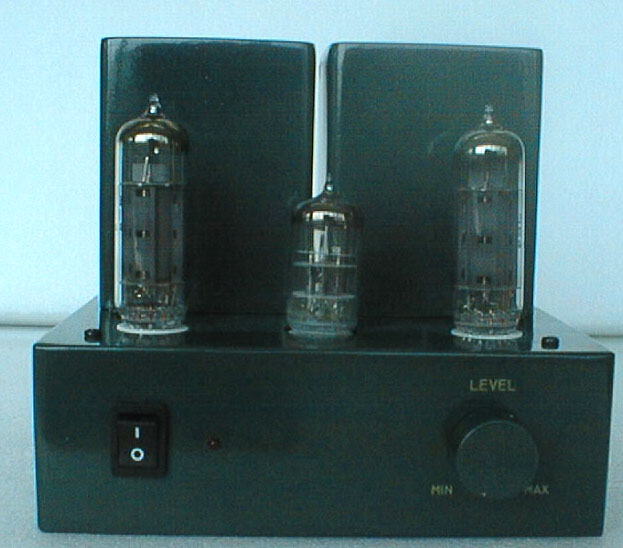

MG-Head - Tube headphone amplifier couple with wide range of Headphone
Model | MG-Head |
Output Power | 150mW x 2 |
Frequency responsible at 1 W | 15Hz - 35KHz |
Frequency responsible at full power | 19Hz - 40KHz |
Distortion at 1W | < 0.4% |
Distortion at full power | < 0.8% |
S/N Ratio / Noise level mV | 80 db /0.2mV |
S/N Ratio with A weighting | 88 db (0.08mV) |
Input impedance | 100K |
Output Impedance | HIGH - LOW (10 Ohm - 600 Ohm) |
Input sensitive | 300mV |
Power request | 21W |
Fuse | 1A Slow blow |
Power cord - Detachable /Fixed | Fixed |
Input Sockets | RCA Gold Plate |
Output Termininal | 3.5mm /6.5mm Mic Jack |
Chassis Finish | Shinning Iron with powder paint |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 6BQ5 x 2,12AX7 x 1 |
Dimension W x D x H in mm | 180 x 190 x 160 |
Shipping Dimension W x D x H in mm | 260 x 240 x 220 |
Net Weight /Kg | 4.2Kg |
Shipping Weight /Kg | 4.8Kg |
