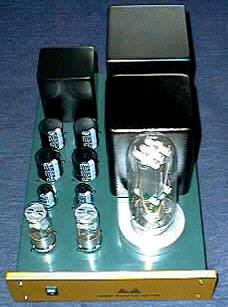

MG-SPM211 mono block single end triode power amplifier - 211 x 1
| Model | MGSPM211 |
| Output Power | 12W |
| Frequency responsible at 1 W | 20Hz - 22KHz |
| Distortion at 1W | < 1% |
| Distortion at full power | < 5% |
| Frequency responsible at full power | 20Hz - 20KHz |
| S/N Ratio / Noise level mV | 80 db /3mV |
| S/N Ratio with A weighting | 93 db (0.7mV) |
| Input impedance | 100K |
| Output Impedance | 4,8 Ohm |
| Input sensitive | 1V |
| Power request | 200W |
| Fuse | 5A Slow blow |
| Power cord - Detachable /Fixed | Detachable |
| Input Sockets | RCA Gold Plate |
| Output Termininal | 5 Way Gold Plate Heavy duty |
| Chassis Finish | Iron with powder paint |
| Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
| Tube Complement | 211 x 1,6SN7 x 1,6SL7 x 1 |
| Dimension W x D x H in mm | 260 x 395 x 210 |
| Shipping Dimension W x D x H in mm | 350 x 470 x 315 |
| Net Weight /Kg | 17Kg |
| Shipping Weight /Kg | 19Kg |
