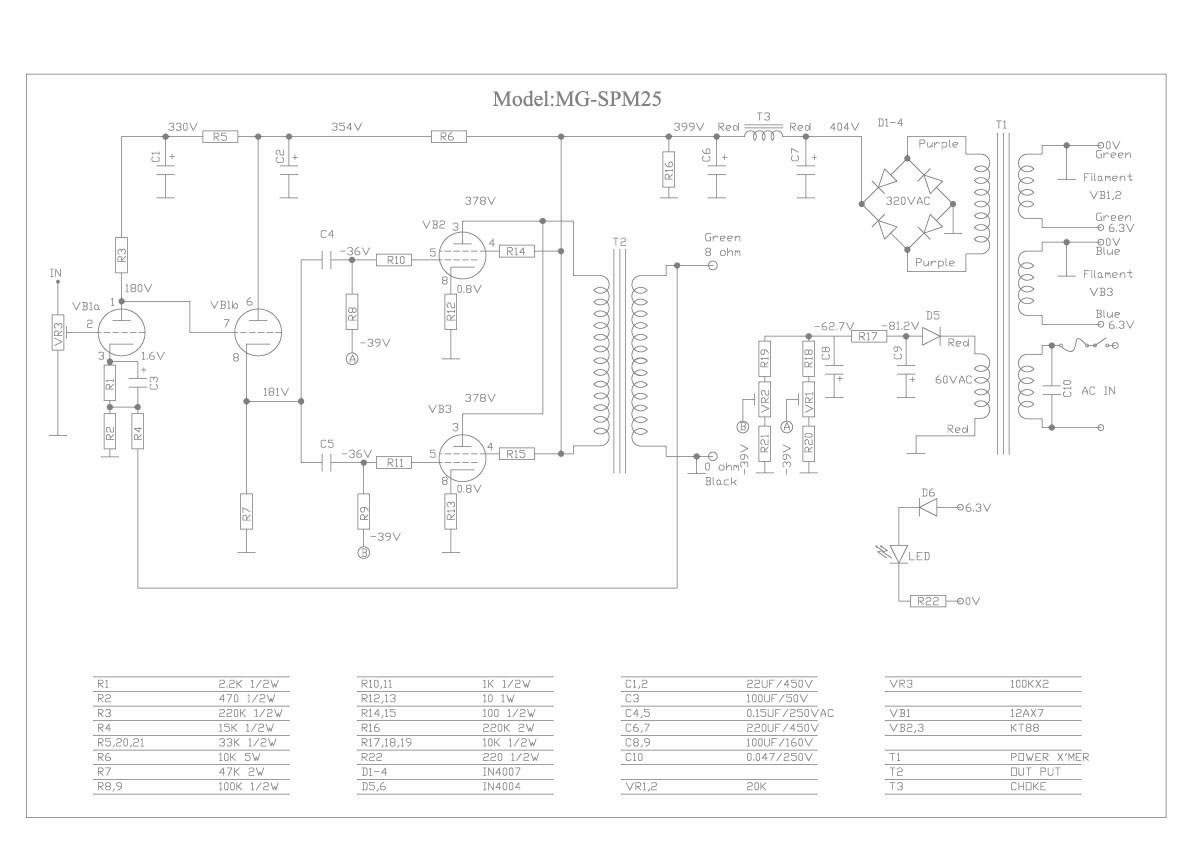

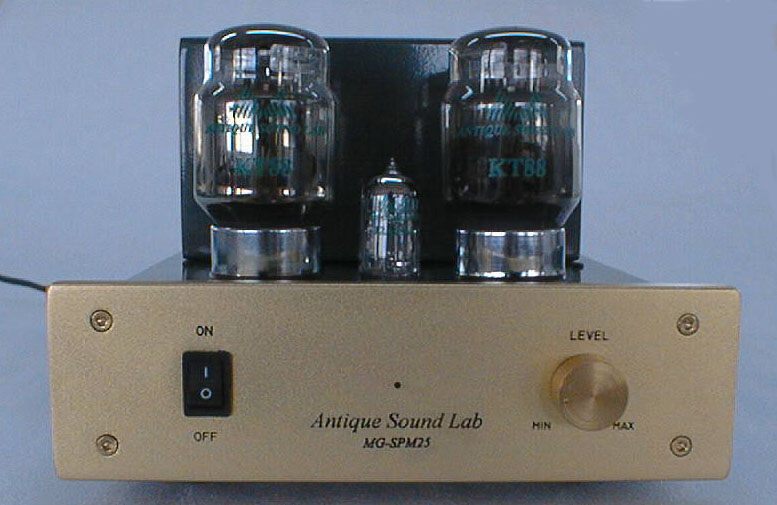

MG-SPM25 Mono block single end power amplifier - KT88
Model | MG-SPM25 |
Output Power | 25W |
Frequency responsible at 1 W | 15Hz - 35KHz |
Frequency responsible at full power | 30Hz - 25KHz |
Distortion at 1W | < 0.8% |
Distortion at full power | < 7% |
S/N Ratio / Noise level mV | 80 db /1.4mV |
S/N Ratio with A weighting | 87 db (0.7mV) |
Input impedance | 100K |
Output Impedance | 8 Ohm |
Input sensitive | 800mV |
Power request | 130W |
Fuse | 3A Slow blow |
Power cord - Detachable /Fixed | Fixed |
Input Sockets | RCA Gold Plate |
Output Termininal | Heavy duty 5 ways Gold plate speaker post |
Chassis Finish | Iron with powder paint |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | KT88 x 2,12AX7 x 1 |
Dimension W x D x H in mm | 350 x 220 x 170 |
Shipping Dimension W x D x H in mm | 454 x 304 x 274 |
Net Weight /Kg | 10Kg |
Shipping Weight /Kg | 11Kg |
