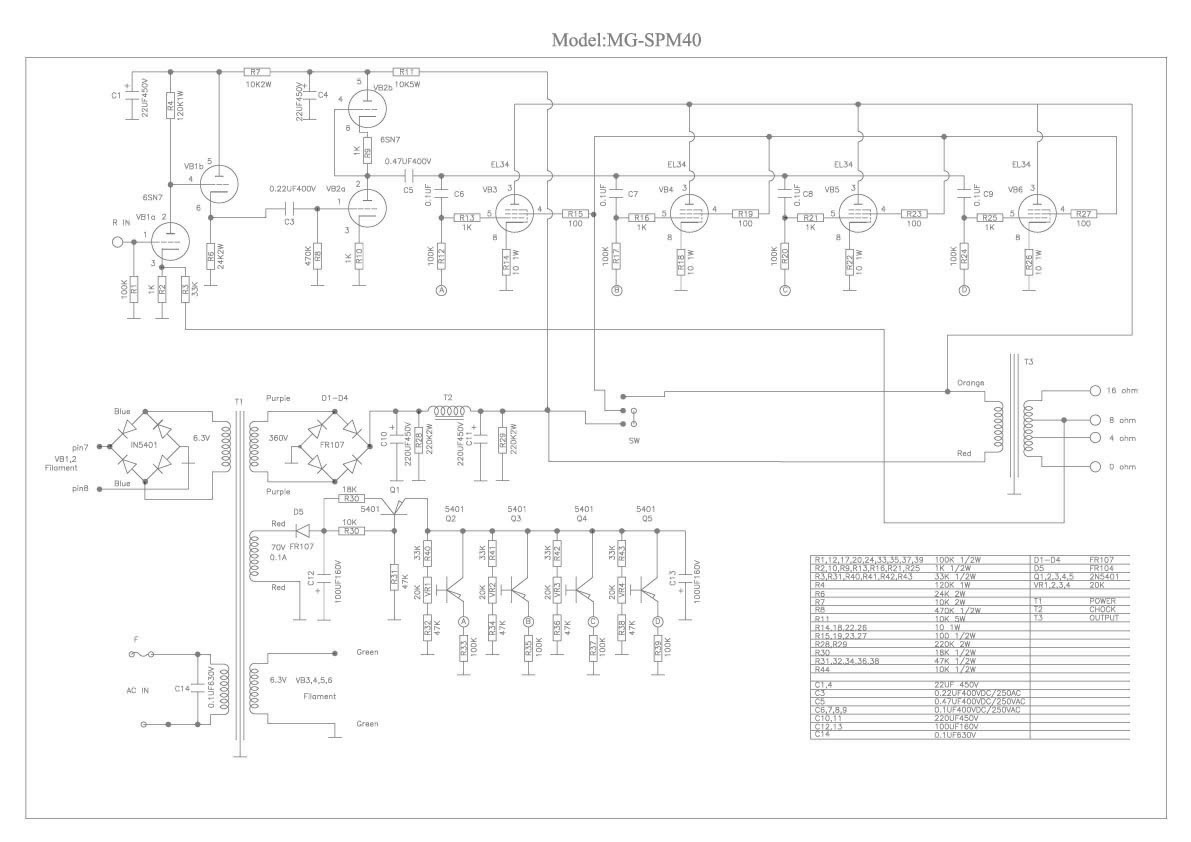

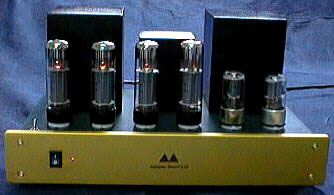

MG-SPM40 - Affordable Single end power amplifier EL34 x 4 - pure class A
Model | MG-SPM50 |
Output Power | 50W |
Frequency responsible at 1 W | 23Hz - 42KHz |
Frequency responsible at full power | 11Hz - 38KHz |
Distortion at 1W | < 0.5% |
Distortion at full power | < 3% |
S/N Ratio / Noise level mV | 80 db /2mV |
S/N Ratio with A weighting | 92 db (0.5mV) |
Input impedance | 100K |
Output Impedance | 8,16 Ohm |
Input sensitive | 1V |
Power request | 145W |
Fuse | 5A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | 5 Way Gold Plate Heavy duty |
Chassis Finish | Iron with powder paint |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | EL34 x 4,6SN7 x 2 |
Dimension W x D x H in mm | 385 x 275 x 210 |
Shipping Dimension W x D x H in mm | 350 x 470 x 315 |
Net Weight /Kg | 17.2Kg |
Shipping Weight /Kg | 19.2Kg |
