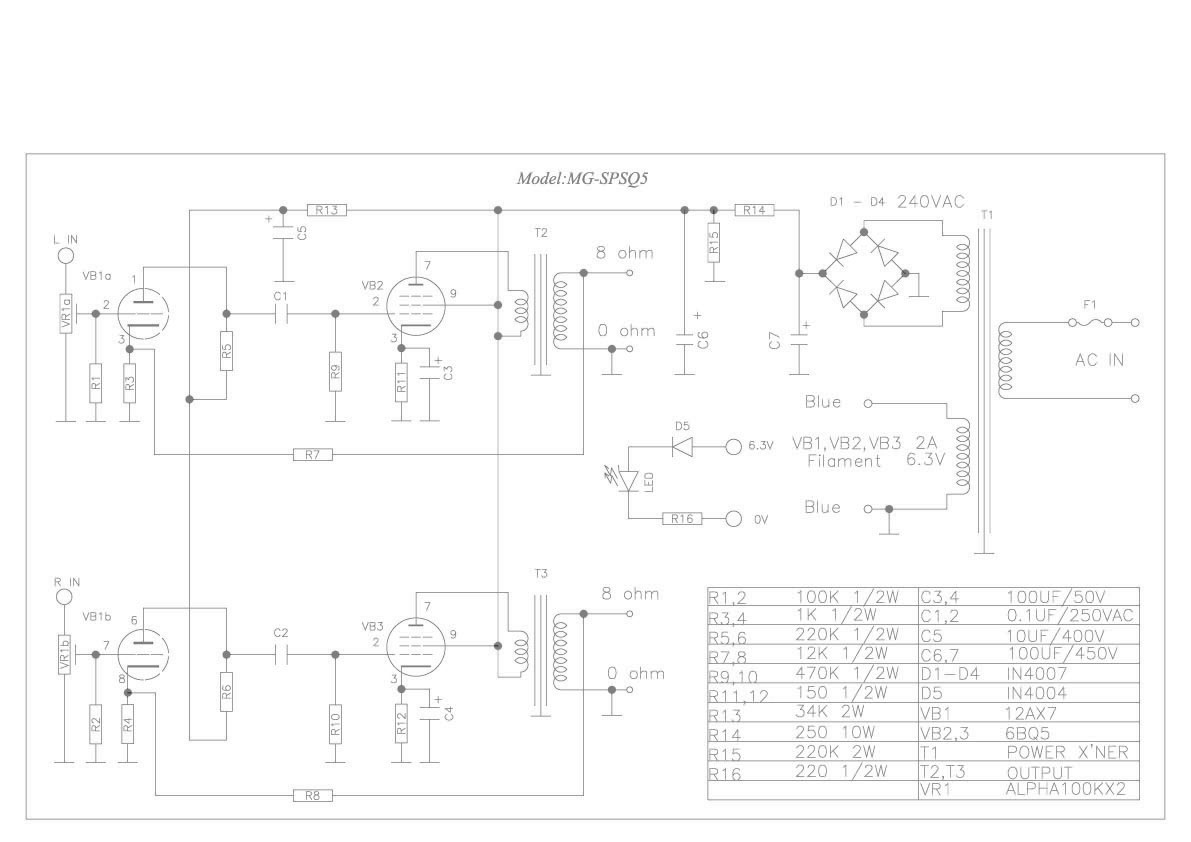

MG-SPSQ5 miniaturer single end stereo amplifier with V.R - 6BQ5 x 2
(Photo- MG-SPSV6 , only power tube difference)
Model | MG_SPSQ5 |
Output Power | 3.5W x 2 |
Frequency responsible at 1 W | 25Hz - 30KHz |
Frequency responsible at full power | 50Hz - 25KHz |
Distortion | <5% |
S/N Ratio / Noise level mV | 79db |
Input impedance | 100K |
Output Impedance | 8 Ohm |
Input sensitive | 500mV |
Power request | 45W |
Fuse | 1A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | 5 Way Gold Plate Heavy duty |
Chassis Finish | Iron with powder paint |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 6BQ5 x 2,12AX7 x 1 |
Dimension W x D x H in mm | 250 x 165 x 160 |
Shipping Dimension W x D x H in mm | 290 x 200 x 200 |
Net Weight /Kg | 6Kg |
Shipping Weight /Kg | 6.5Kg |
