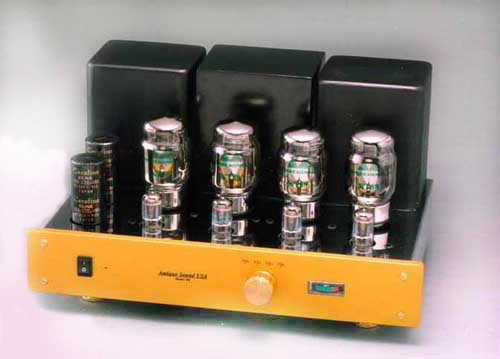

AQ1002
Stereo Push/Pull Power amplifier
Model | AQ1002 |
Output Power | 50W x 2 |
Frequency responsible at 1 W | 10Hz - 30KHz |
Distortion at 1W | < 0.3% |
Distortion at full power | < 3% |
Frequency responsible at full power | 20Hz - 25KHz |
S/N Ratio / Noise level mV | 82 db /1.6mV |
S/N Ratio with A weighting | 95 db (0.5mV) |
Input impedance | 100K |
Output Impedance | 4,8,16 ohm |
Input sensitive | 300mV |
Power request | 340W |
Fuse | 5A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | Heavy duty gold plate 5 ways speaker post |
Chassis Finish | Shinning steel |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 6550 x 4, 12AU7 x 4 |
Dimension W x D x H in mm | 430 x 320 x 240 |
Shipping Dimension W x D x H in mm | 500 x 400 x 300 |
Net Weight /Kg | 19Kg |
Shipping Weight /Kg | 21Kg |
