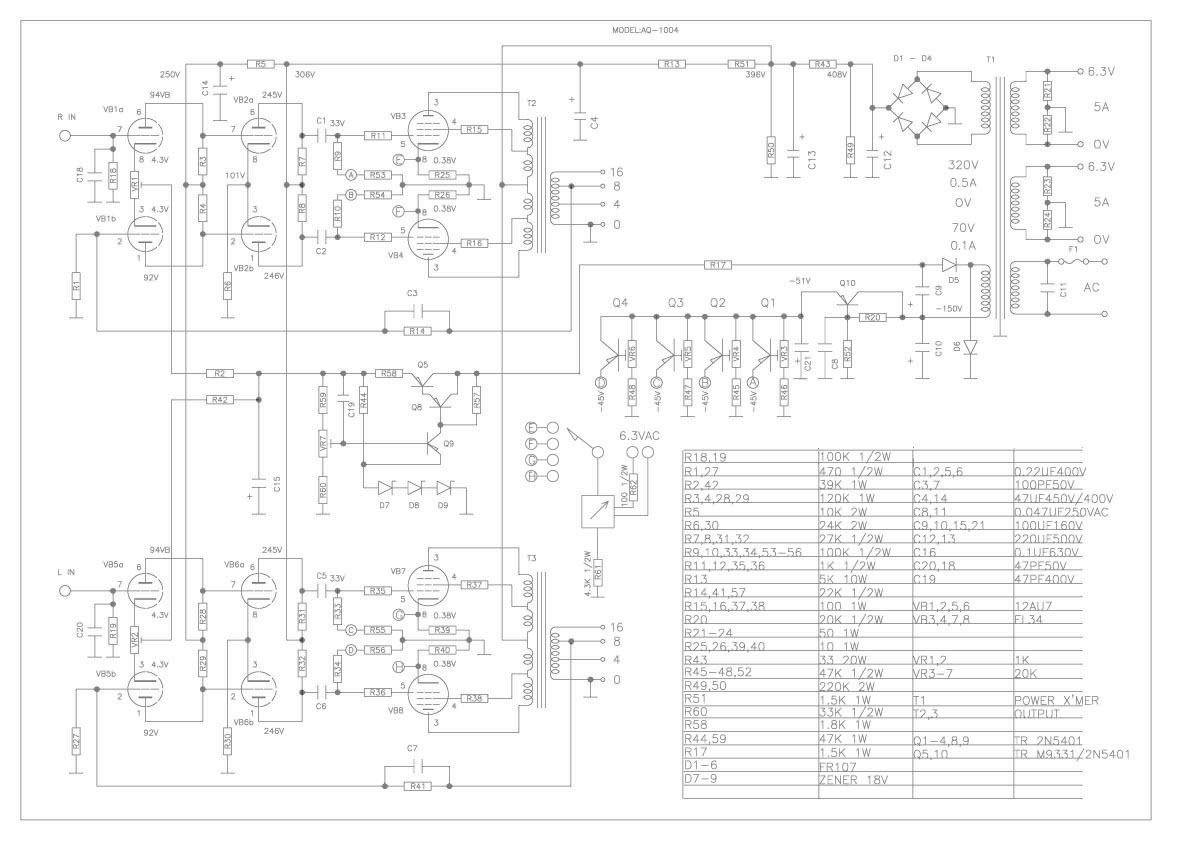

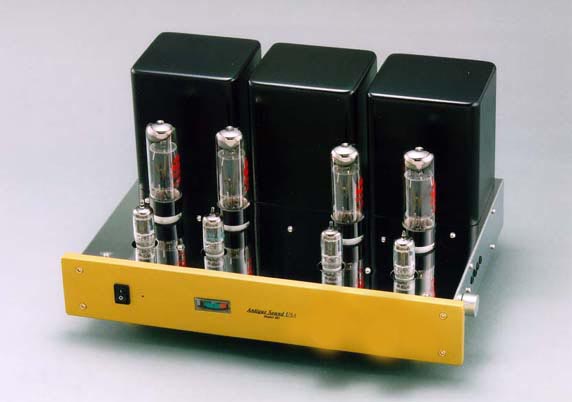

AQ1004
Stereo Push/pull Power amplifiers
Model | AQ1004 |
Output Power | 35W x 2 |
Frequency responsible at 1 W | 18Hz - 25KHz |
Frequency responsible at full power | 20Hz - 20KHz |
Distortion at 1W | < 1% |
Distortion at full power | < 3% |
S/N Ratio / Noise level mV | 80 db /1.7mV |
S/N Ratio with A weighting | 89 db (0.45mV) |
Input impedance | 100K |
Output Impedance | 4,8,16 Ohm |
Input sensitive | 1V |
Power request | 280W |
Fuse | 3A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | Heavy duty gold plate 5 ways speaker post |
Chassis Finish | Shinning Steel |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | EL34 x 4,12AU7 x 4 |
Dimension W x D x H in mm | 390 x 280 x 204 |
Shipping Dimension W x D x H in mm | 470 x 350 x 315 |
Net Weight /Kg | 18.5Kg |
Shipping Weight /Kg | 20.5Kg |
