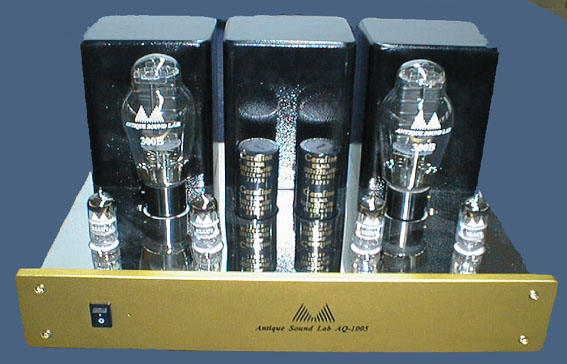

AQ1005
Single end Stereo Power Amplifier - 300B
| Model | AQ1005 |
| Output Power | 8W x 2 |
| Frequency responsible at 1 W | 10Hz - 52KHz |
| Frequency responsible at full power | 16Hz - 37KHz |
| Distortion at 1W | < 0.18% |
| Distortion at full power | < 3% |
| S/N Ratio / Noise level mV | 85 db /0.5mV |
| S/N Ratio with A weighting | 93 db (0.18mV) |
| Input impedance | 100K |
| Output Impedance | 4, 8, 16 Ohm |
| Input sensitive | 1V |
| Power request | 120W |
| Fuse | 3A Slow blow |
| Power cord - Detachable /Fixed | Detachable |
| Input Sockets | RCA Gold Plate |
| Output Termininal | Heavy duty gold plate 5 ways speaker post |
| Chassis Finish | Shinning Steel |
| Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
| Tube Complement | 300B x 4,12AU7 x 4 |
| Dimension W x D x H in mm | 390 x 280 x 204 |
| Shipping Dimension W x D x H in mm | 470 x 350 x 315 |
| Net Weight /Kg | 18Kg |
| Shipping Weight /Kg | 20Kg |
