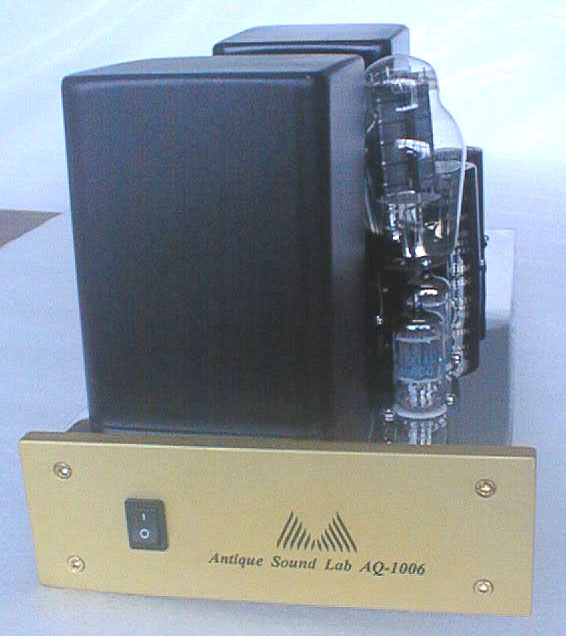

AQ1006-300B
Mono block single end pure class A power amplifier
Model | AQ1006_300B |
Output Power | 8W |
Frequency responsible at 1 W | 11Hz - 28KHz |
Frequency responsible at full power | 20Hz - 29KHz |
Distortion at 1W | < 0.4% |
Distortion at full power | < 2% |
S/N Ratio / Noise level mV | 85 db /0.5mV |
S/N Ratio with A weighting | 90 db (0.1mV) |
Input impedance | 100K |
Output Impedance | 4, 8 Ohm |
Input sensitive | 1V |
Power request | 70W |
Fuse | 3A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | 5 Way Gold Plate Heavy duty |
Chassis Finish | Shinning Steel |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 300B x 1,12AU7 x 2 |
Dimension W x D x H in mm | 195 x 350 x 210 |
Shipping Dimension W x D x H in mm | 350 x 470 x 315 |
Net Weight /Kg | 12.5Kg |
Shipping Weight /Kg | 13.5Kg |
