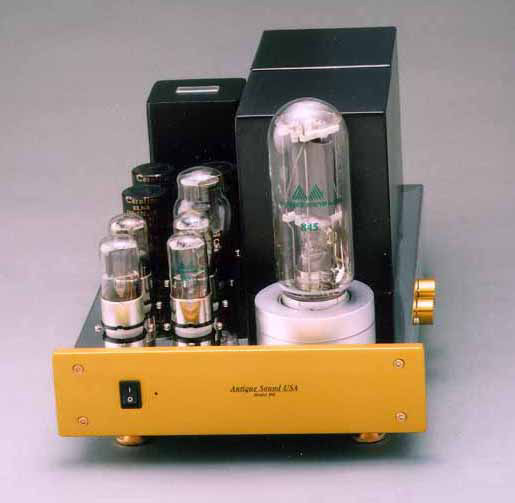

Q1006/845
Single end Mono block Power amplifiers - full triode tube from In to out.
| Model | AQ1006_845 |
| Output Power | 22W |
| Frequency responsible at 1 W | 12Hz - 25KHz |
| Frequency responsible at full power | 25Hz - 18KHz |
| Distortion at 1W | < 0.2% |
| Distortion at full power | < 3% |
| S/N Ratio / Noise level mV | 81 db /1.2mV |
| S/N Ratio with A weighting | 89 db (0.5mV) |
| Input impedance | 100K |
| Output Impedance | 4,8,16 ohm |
| Input sensitive | 850mV |
| Power request | 210W |
| Fuse | 5A Slow blow |
| Power cord - Detachable /Fixed | Detachable |
| Input Sockets | RCA Gold Plate |
| Output Termininal | Heavy duty gold plate 5 ways speaker post |
| Chassis Finish | Shinning Steel |
| Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
| Tube Complement | 845 x 1,6L6 x 1,6SN7 x 3 |
| Dimension W x D x H in mm | 260 x 395 x 253 |
| Shipping Dimension W x D x H in mm | 350 x 470 x 333 |
| Net Weight /Kg | 19Kg |
| Shipping Weight /Kg | 21Kg |
