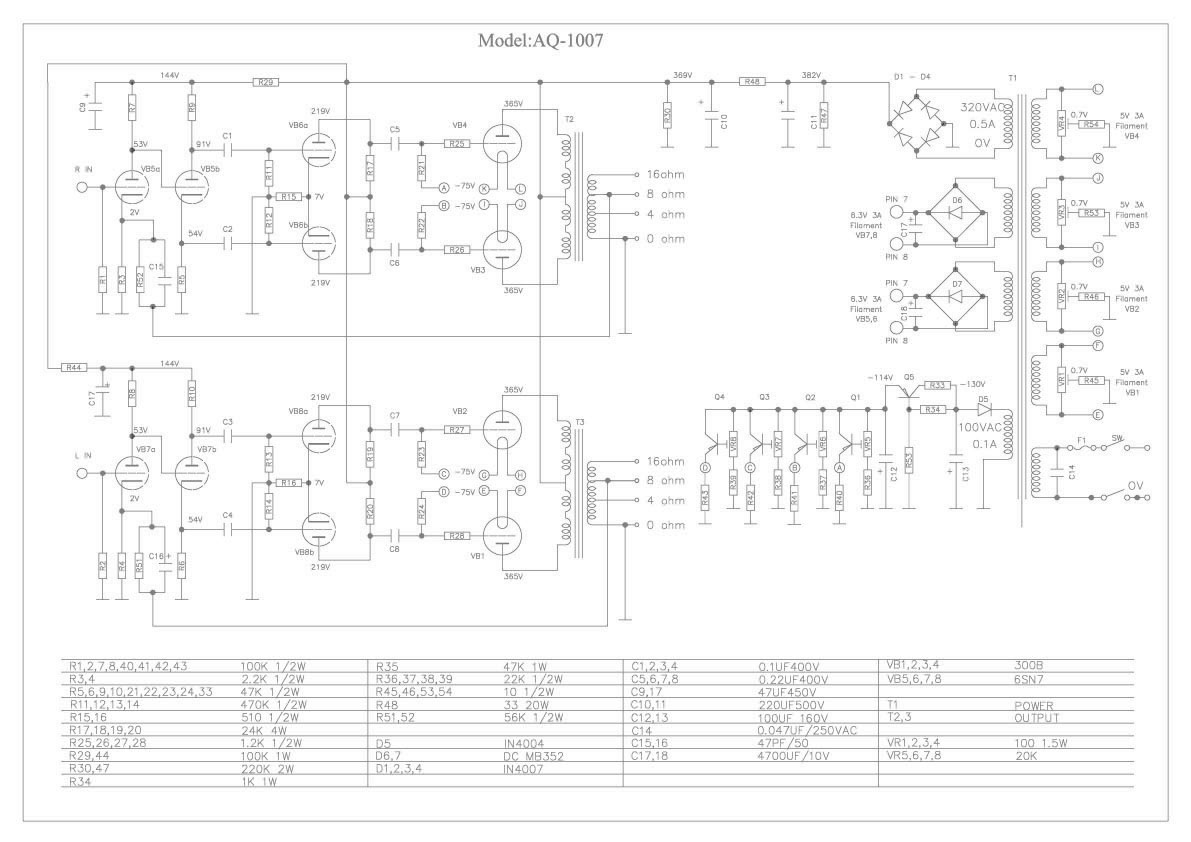

AQ1007 - Push/Pull Stereo power amplifier - Class A
300B x 4 - 18W x 2
Model | AQ1007 |
Output Power | 18W x 2 |
Frequency responsible at 1 W | 11Hz - 40KHz |
Frequency responsible at full power | 30Hz - 44KHz |
Distortion at 1W | < 0.15% |
Distortion at full power | < 2.5% |
S/N Ratio / Noise level mV | 80 db /1.5mV |
S/N Ratio with A weighting | 92 db (0.5mV) |
Input impedance | 100K |
Output Impedance | 4,8,16 Ohm |
Input sensitive | 1V |
Power request | 200W |
Fuse | 5A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | Heavy duty gold plate 5 ways speaker post |
Chassis Finish | Shinning Steel |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 300B x 4,6SN7 x 4 |
Dimension W x D x H in mm | 280 x 370 x 204 |
Shipping Dimension W x D x H in mm | 350 x 470 x 315 |
Net Weight /Kg | 18Kg |
Shipping Weight /Kg | 20Kg |
