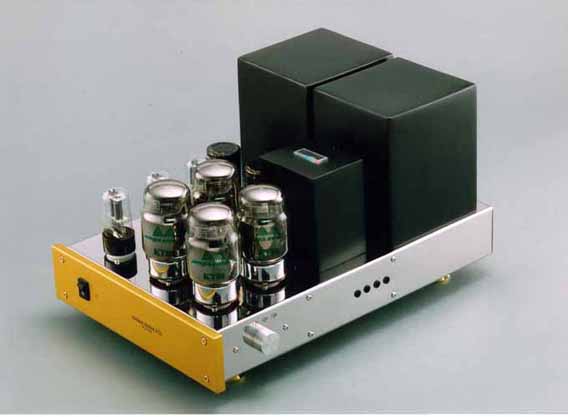

AQ1008 - 110W
Push/Pull Mono block Power amplifiers -6550 x 4
| Model | AQ1008 |
| Output Power | 110W |
| Frequency responsible at 1 W | 10 Hz - 100Khz |
| Distortion at 1W | < 0.1% |
| Distortion at full power | < 3% |
| Frequency responsible at full power | 18Hz - 28Khz |
| S/N Ratio / Noise level mV | 80 db /3mV |
| S/N Ratio with A weighting | 97 db (0.4mV) |
| Input impedance | 100K |
| Output Impedance | 4,8,16 Ohm |
| Input sensitive | 1V |
| Power request | 335W |
| Fuse | 5A Slow blow |
| Power cord - Detachable /Fixed | Detachable |
| Input Sockets | RCA Gold Plate |
| Output Termininal | Heavy duty gold plate 5 ways speaker post |
| Chassis Finish | Shinning Steel |
| Front Panel Finish | Aluminium with Anodizing , Gold , Silver or Black |
| Tube Complement | 6550 x 4,6SN7 x 2 |
| Dimension W x D x H in mm | 260 x 395 x 220 |
| Shipping Dimension W x D x H in mm | 350 x 470 x 315 |
| Net Weight /Kg | 19Kg |
| Shipping Weight /Kg | 20Kg |
