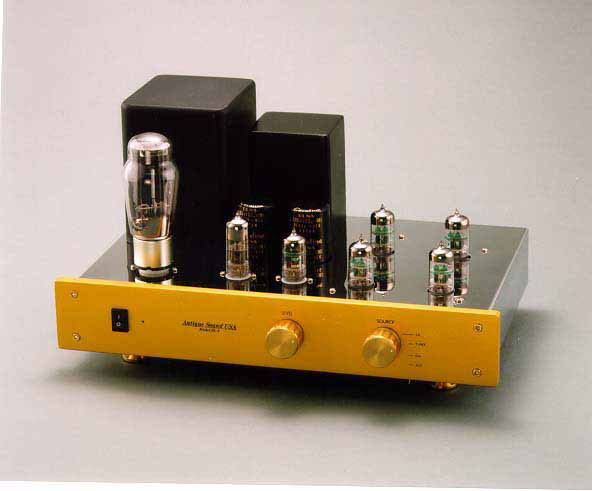

AQ2001 - High grade line amplifiers
Model | AQ2001 |
Gain | 12 |
Maximum output | 10V |
Frequency responsible at 1V | 10Hz - 100KHz |
Frequency responsible at full power | 12Hz - 70KHz |
S/N Ratio / Noise level mV | 85 db /0.5mV |
S/N Ratio with A weighting | 96 db (0.05mV) |
Input impedance | 100K |
Power request | 36W |
Fuse | 1A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | RCA Gold Plate |
Chassis Finish | Shinning Steel |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 5AR4 x 1,6V6 x 1,12AX7 x 3,12AU7 x 2 |
Dimension W x D x H in mm | 390 x 280 x 222 |
Shipping Dimension W x D x H in mm | 420 x 350 x 333 |
Net Weight /Kg | 8Kg |
Shipping Weight /Kg | 9Kg |
