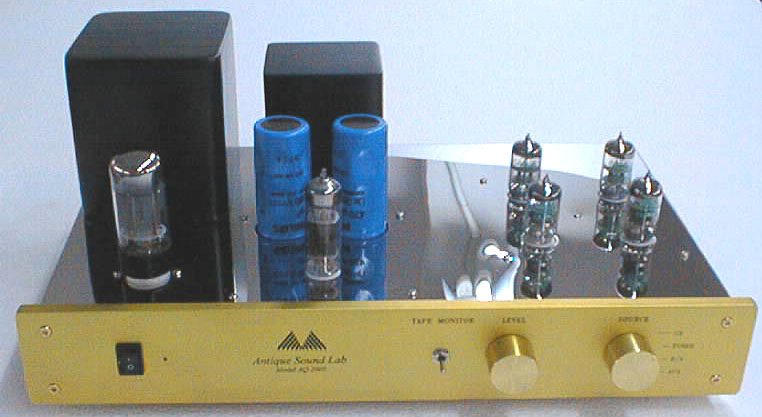

AQ2005 - PCB type high grade line amplifiers
Model | AQ2005 |
Gain | 8 |
Maximum output | 3.2V |
Frequency responsible at 1V | 10Hz - 100KHz |
Frequency responsible at full power | 10Hz - 70KHz |
Distortion at 1V | < 2% |
Distortion at full power | < 4% |
S/N Ratio / Noise level mV | 85 db /0.5mV |
S/N Ratio with A weighting | 92 db (0.03mV) |
Input impedance | 100K |
Power request | 40W |
Fuse | 1A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | RCA Gold Plate |
Chassis Finish | Iron with powder paaint |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 5AR4 x 1,6BM8 x 1,12AX7 x 2,12AU7 x 2 |
Dimension W x D x H in mm | 430 x 290 x 218 |
Shipping Dimension W x D x H in mm | 530 x 390 x 318 |
Net Weight /Kg | 8.5Kg |
Shipping Weight /Kg | 9.5Kg |
