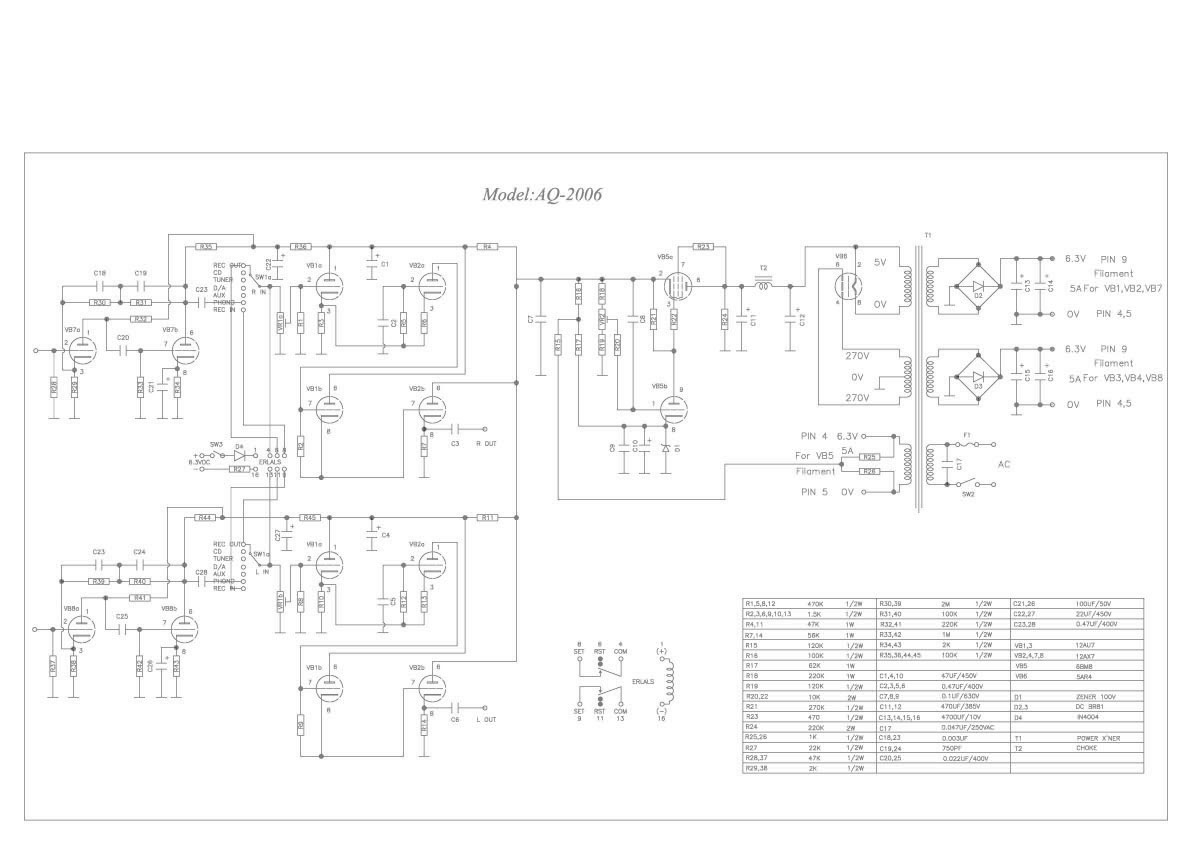

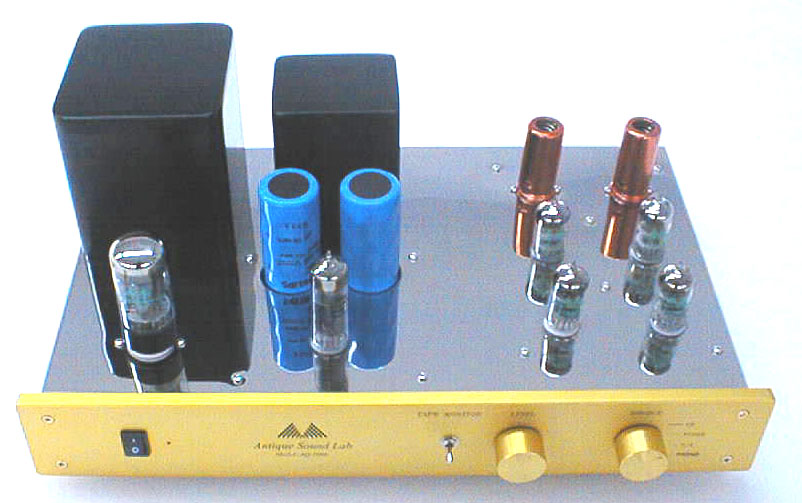

AQ2006 - PCB type High grade , Phono + Line amplifier
Model | AQ2006 |
Phono | |
Gain | 21db |
Maximum output | 12V |
Frequency responsible | 20Hz + 17db 20KHz - 17db (Riaa) |
Distortion | < 1% |
S/N Ratio / Noise level mV | 79 db /3mV (test at line output) |
S/N Ratio with A weighting | 88 db 1mV |
Line Gain | 8 |
Maximum output | 3.2V |
Frequency responsible at 1V | 10Hz - 100KHz |
Frequency responsible at full power | 10Hz - 70KHz |
Distortion at 1V | < 2% |
Distortion at full power | < 4% |
S/N Ratio / Noise level mV | 81 db /0.3mV |
S/N Ratio with A weighting | 92 db (0.08mV) |
Input impedance | 100K |
Imput sensitive | 400mV |
Power request | 40W |
Fuse | 1A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | RCA Gold Plate |
Chassis Finish | Iron with powder paaint |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 5AR4 x 1,6BM8 x 1,12AX7 x 2,12AU7 x 2 |
Dimension W x D x H in mm | 430 x 290 x 218 |
Shipping Dimension W x D x H in mm | 530 x 390 x 318 |
Net Weight /Kg | 8.5Kg |
Shipping Weight /Kg | 9.5Kg |
