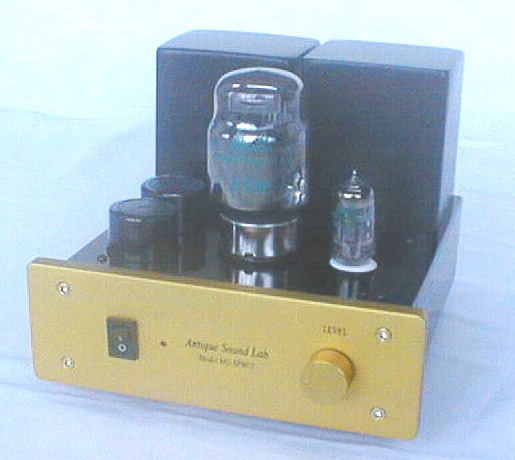

MG-SPM15
Mono block single end power amplifiers - KT88 x 1
| Model | MG-SPM15 |
| Output Power | 15W |
| Frequency responsible at 1 W | 20Hz - 35KHz |
| Frequency responsible at full power | 13Hz - 40KHz |
| Distortion at 1W | < 0.5% |
| Distortion at full power | < 12% |
| S/N Ratio / Noise level mV | 70 db /3.2mV |
| S/N Ratio with A weighting | 88 db (0.5mV) |
| Input impedance | 100K |
| Output Impedance | 8 Ohm |
| Input sensitive | 900mV |
| Power request | 80W |
| Fuse | 3A Slow blow |
| Power cord - Detachable /Fixed | Detachable |
| Input Sockets | RCA Gold Plate |
| Output Termininal | 5 Way Gold Plate Heavy duty |
| Chassis Finish | Iron with powder paint |
| Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
| Tube Complement | KT88 x 1,12AX7 x 1 |
| Dimension W x D x H in mm | 195 x 240 x 160 |
| Shipping Dimension W x D x H in mm | 225 x 280 x 200 |
| Net Weight /Kg | 4.2Kg |
| Shipping Weight /Kg | 4.7Kg |
