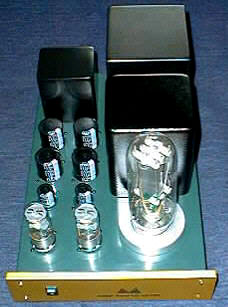

MG-SPM845 mono block single end pure class A power amplifier - 845 x 4
Model | MG-SPM845 |
Output Power | 15W |
Frequency responsible at 1 W | 10Hz - 27KHz |
Frequency responsible at full power | 18Hz - 23KHz |
Distortion at 1W | < 0.2% |
Distortion at full power | < 3% |
S/N Ratio / Noise level mV | 77 db /1.5mV |
S/N Ratio with A weighting | 98 db (0.14mV) |
Input impedance | 100K |
Output Impedance | 4, 8 Ohm |
Input sensitive | 1V |
Power request | 200W |
Fuse | 5A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | 5 Way Gold Plate Heavy duty |
Chassis Finish | Irin with powder paint |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 845 x 1,6SN7 x 2 |
Dimension W x D x H in mm | 260 x 395 x 210 |
Shipping Dimension W x D x H in mm | 350 x 470 x 315 |
Net Weight /Kg | 17Kg |
Shipping Weight /Kg | 19Kg |
