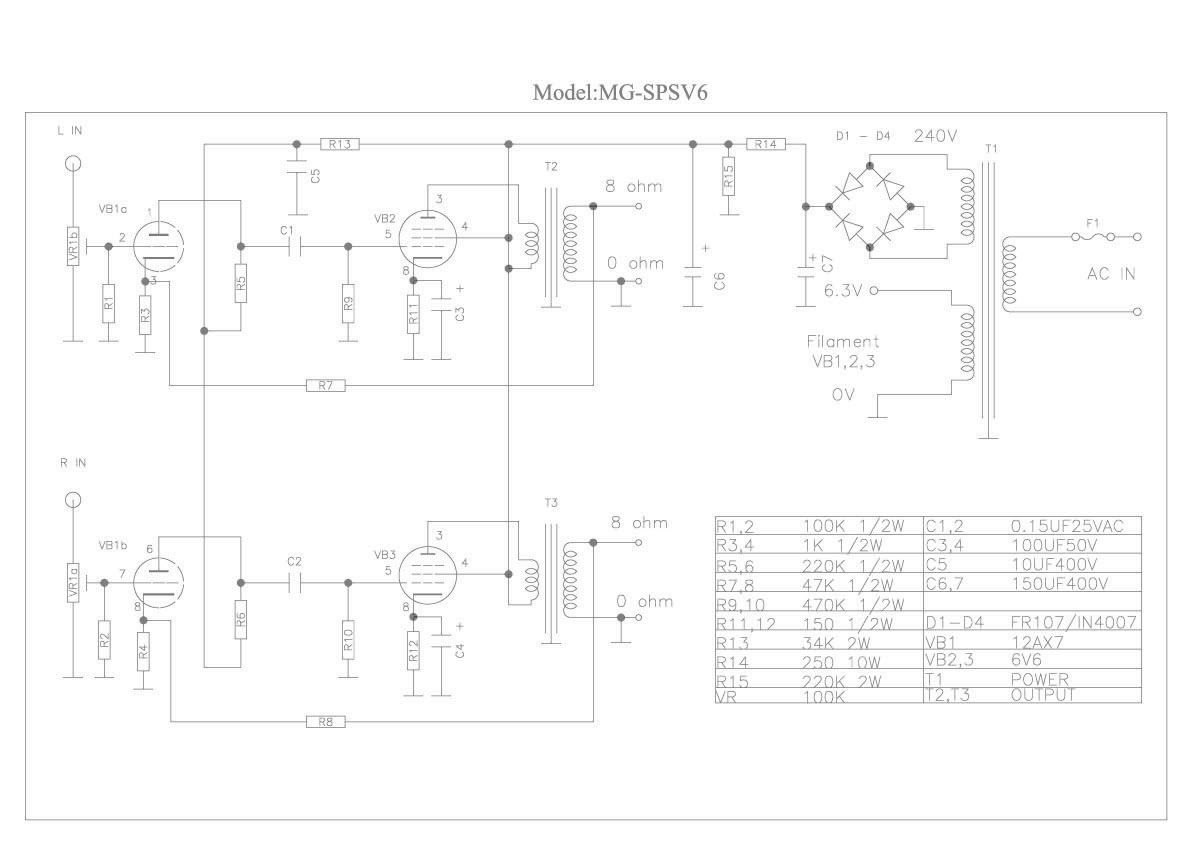

MG-SPSV6
Single end stereo power amp with V.R - 6V6 x 2
Model | MG_SPSV6 |
Output power | 4W x 2 |
Frequency responsible at 1 W | 37Hz - 39KHz |
Frequency responsible at full power | 35Hz - 26KHz |
S/N Ratio / Noise level mV | 79 db |
Input impedance | 100K |
Output Impedance | 8 Ohm |
Input sensitive | 300mV |
Power request | 50W |
Fuse | 1A Slow blow |
Power cord - Detachable /Fixed | Detachable |
Input Sockets | RCA Gold Plate |
Output Termininal | 5 Way Gold Plate Heavy duty |
Chassis Finish | Iron with powder paint |
Front Panel Finish | Aluminium /Gold /Silver or Black Anodizing |
Tube Complement | 6V6 x 2,12AX7 x 1 |
Dimension W x D x H in mm | 230 x 165 x 160 |
Shipping Dimension W x D x H in mm | 270 x 200 x 200 |
Net Weight /Kg | 6Kg |
Shipping Weight /Kg | 6.5Kg |
