Index of /2-SCHEMATICS/Music-amps/Matchless/DC 30

Icon  Name                    Last modified      Size  Description
[PARENTDIR] Parent Directory                             -

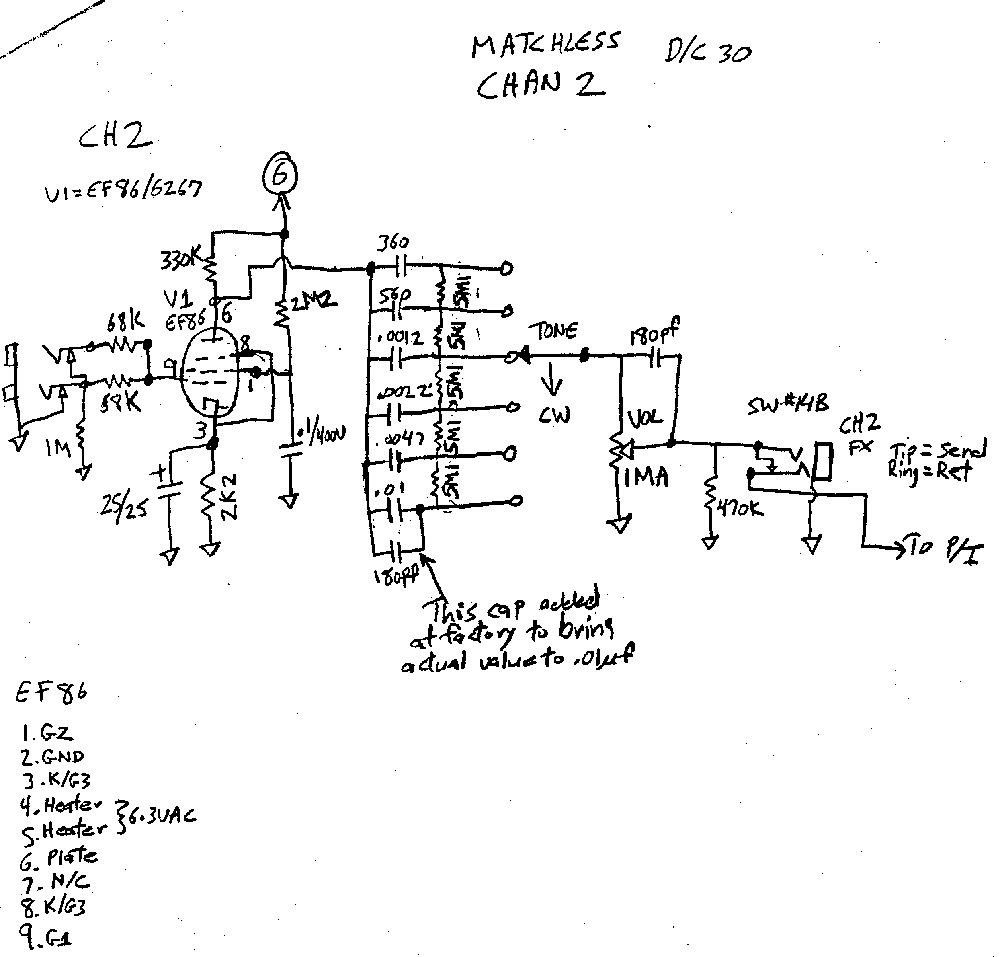

[IMG] DC30 CH2a.gif           2013-04-30 10:00   17K

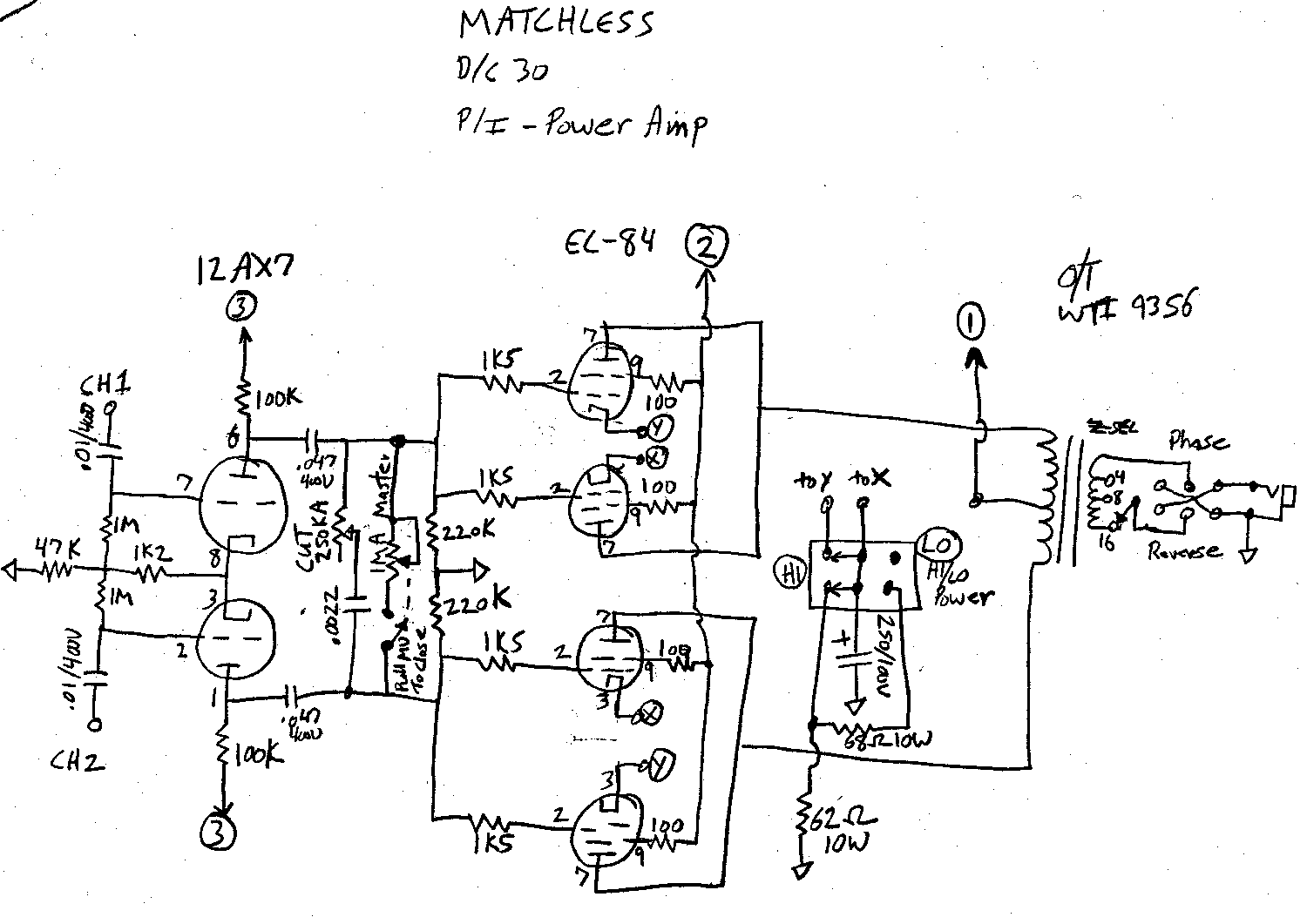

[IMG] DC30 OUTa.gif           2013-04-30 10:00   30K

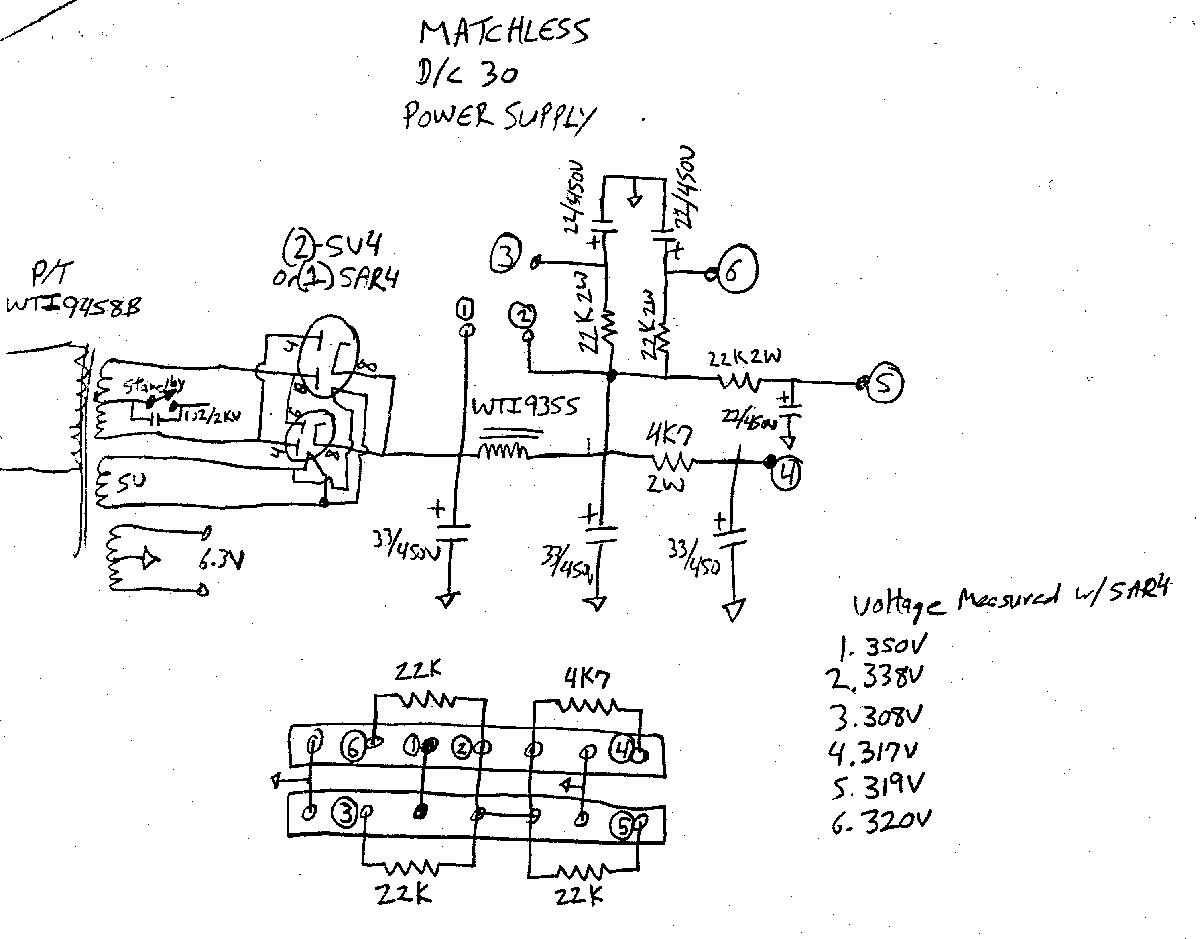

[IMG] DC30 PWRa.gif           2013-04-30 10:00   20K

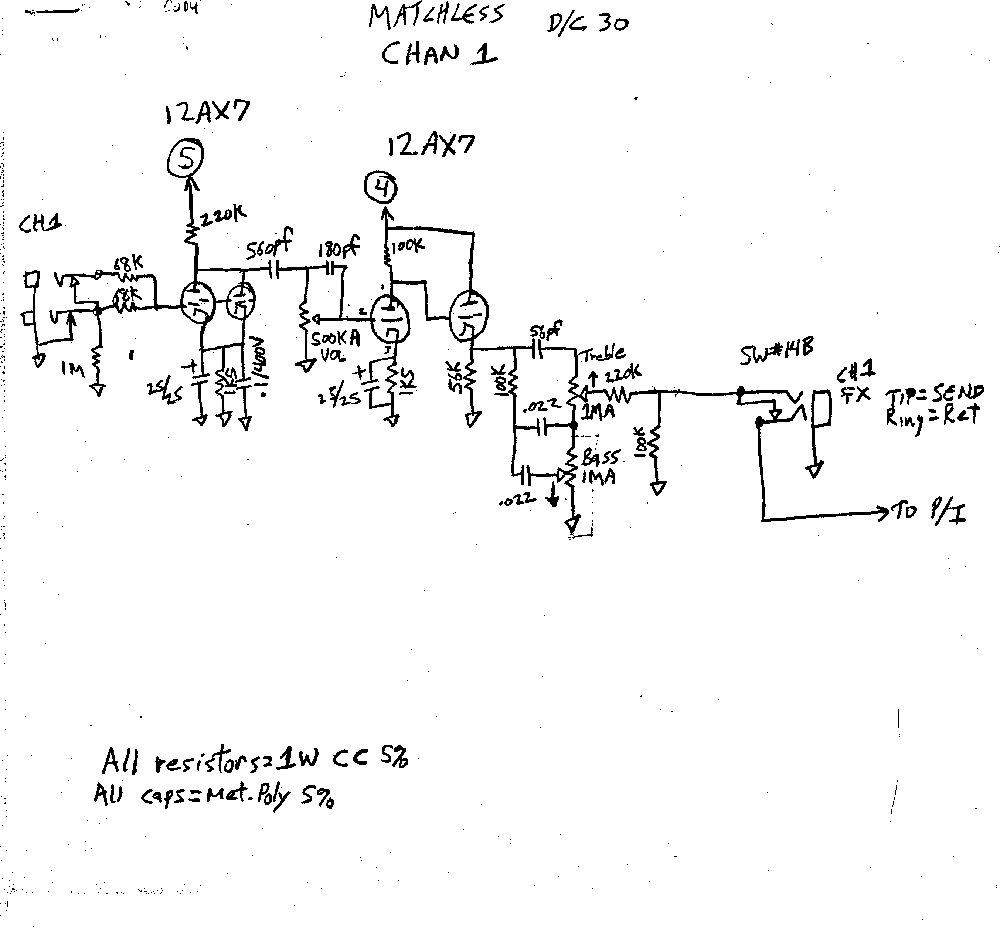

[IMG] DC30CH1a.gif            2013-04-30 10:00   14K
